Product Overview

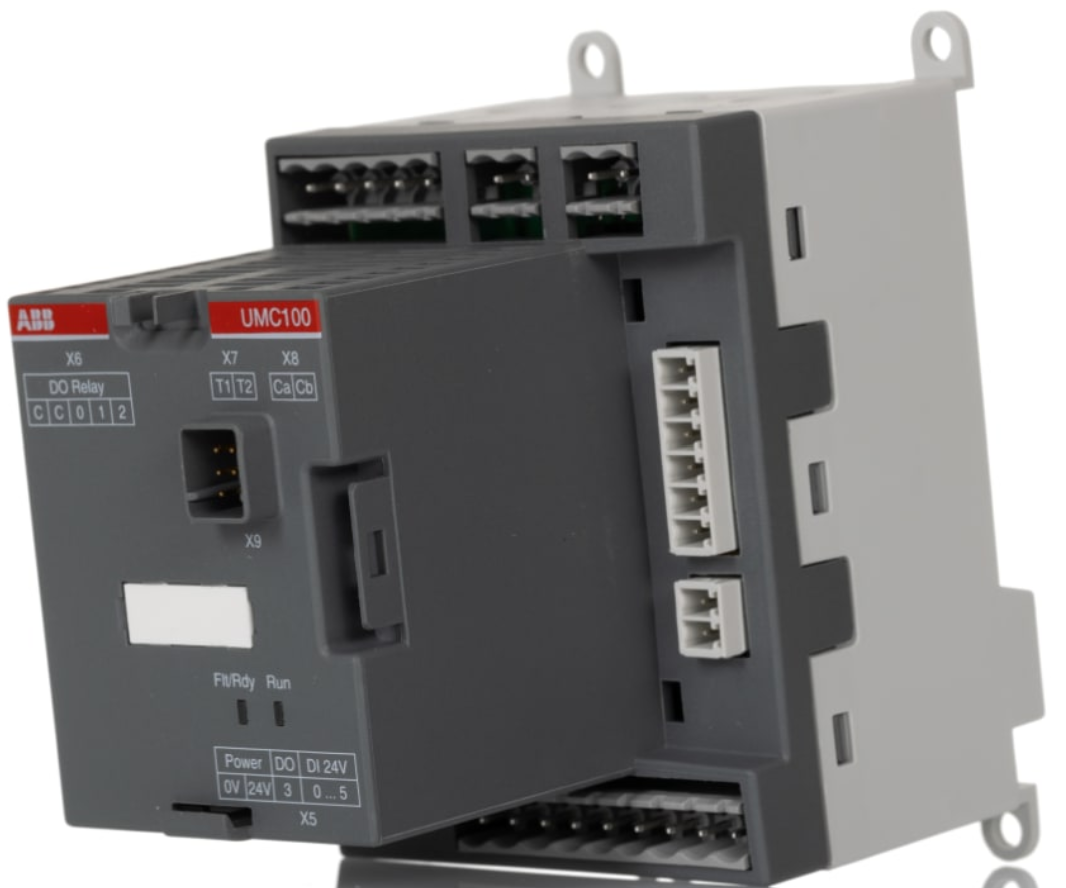

The ABB UMC100.3 is an intelligent motor-management system combining motor protection, control, monitoring, communication and fault diagnosis in one compact unit.
It is commonly installed in low-voltage Motor Control Centres to protect pumps, fans, compressors, conveyors and other constant-speed motors. The controller continues protecting the motor even if communication with the PLC or control system is interrupted.
Manufacturer and Model
- Manufacturer: ABB
- Product family: UMC100.3
- Selected model: UMC100.3 DC
- Manufacturer part number: 1SAJ530000R0100
- Product type: Universal Motor Controller
- Control supply: 24 V DC
Key Technical Specifications
| Specification | Details |
|---|---|
| Motor type | Single-phase and three-phase motors |
| Current range | 0.24–63 A without external CT |
| Maximum operating voltage | Up to 690 V AC |
| Control supply | 24 V DC |
| Digital inputs | 6 |
| Outputs | 4 |
| Temperature protection | PTC thermistor input |
| Earth-fault protection | Supported |
| Communication | Via separate fieldbus/Ethernet interface |
| Mounting | DIN rail or MCC installation |
| Protection rating | IP20 |
| Operating temperature | 0°C to +60°C |
| Dimensions | Approximately 70 × 106 × 107 mm |
| Applicable standard | IEC/EN 60947-4-1 |
Main Functions
- Electronic motor-overload protection
- Underload and locked-rotor detection
- Phase-loss and phase-imbalance monitoring
- Motor-current measurement
- Earth-fault monitoring
- PTC motor-temperature protection
- Motor start and stop control
- Reversing and star-delta starter control
- Operating-hours and start-count recording
- Detailed trip and fault diagnosis
- Configurable digital inputs and outputs
- Local or remote control
- Preventive-maintenance information
Communication Options
Compatible communication modules are available for:
- PROFIBUS DP
- PROFINET
- Modbus RTU
- Modbus TCP
- EtherNet/IP
- DeviceNet
Marine and Industrial Applications
- Engine-room motor control centres
- Cooling-water and seawater pumps
- Ballast and bilge pumps
- Fuel-transfer pumps
- Ventilation and exhaust fans
- Air compressors
- Hydraulic power-pack motors
- Cargo-handling systems
- Offshore platforms and FPSOs
- Shipyards, power plants and process industries
