Product Overview

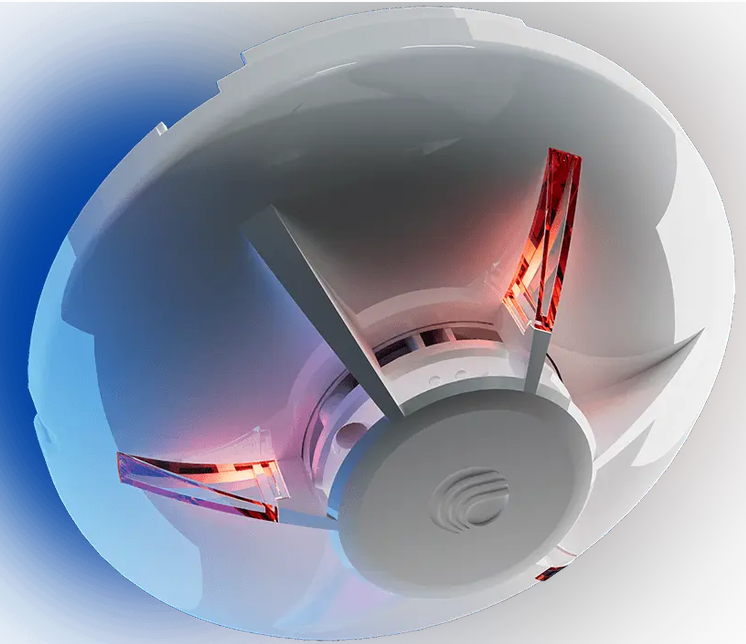

The Consilium Salwico CD-PH is an analogue-addressable combined optical smoke and heat detector for the Salwico CCP fire-detection system.
Unlike the previously listed EV-P smoke-only detector, the CD-PH combines optical smoke detection, fixed-temperature detection and rate-of-rise heat detection. It also incorporates short-circuit isolation to protect the detector loop.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Consilium Safety/Salwico |
| Exact model | CD-PH |
| Part number | 5101610-00 |
| Compatible system | Salwico CCP |
| Detector type | Combined addressable smoke and heat detector |
| Smoke principle | Optical light scattering |
| Heat sensor | Thermistor |
| Heat classification | A1R |
| Fixed heat-alarm temperature | 54°C |
| Heat function | Fixed temperature plus rate-of-rise |
| Short-circuit protection | Integrated SCI |
| Operating voltage | 20–38 VDC |
| Quiescent current | Approximately 0.2 mA |
| Alarm current | Approximately 1.5 mA |
| Remote output | Maximum 4 mA |
| Normal power consumption | Approximately 7 mW |
| Communication protocol | IDANx |
| Address range | 1–254 |
| Operating temperature | −40°C to +70°C |
| Storage temperature | −40°C to +70°C |
| Humidity | 0–95% RH, non-condensing |
| Ingress protection | Depends on selected detector base |
| Housing material | PC/ABS |
| Colour | Signal white, RAL 9003 |
| Diameter | 104 mm |
| Installed height | Approximately 41 mm |
| Weight | Approximately 105 g |
| Compass-safe distance | 300 mm according to IEC 60945 |
Detection Configurations
The detector can be configured during commissioning for:
- Optical smoke detection only
- Heat detection only
- Combined smoke and heat detection
- Individual smoke and heat alarms
- Adjustable smoke-sensitivity levels
Key Features
- Combined optical smoke and A1R heat detection
- Fixed 54°C heat-alarm threshold
- Rate-of-temperature-rise monitoring
- Integrated short-circuit isolator
- Individual smoke and heat alarm generation
- Adjustable smoke sensitivity
- Protection against unwanted alarms
- Red LED alarm indicator
- Remote indicator or sounder output
- Periodic built-in self-testing
- Automatic contamination compensation
- Dirty-sensor condition monitoring
- Fine protective mesh reduces dust contamination
- Individual address programming from 1 to 254
- Retrofit capability without interrupting the complete loop
Short-Circuit Isolator Data
| SCI parameter | Rating |
|---|---|
| Minimum opening voltage | 9 VDC |
| Maximum opening voltage | 11 VDC |
| Minimum closing voltage | 10 VDC |
| Maximum closing voltage | 12 VDC |
| Maximum line current | 800 mA |
| Maximum switching current | 1,500 mA |
| Maximum leakage current | 13 mA |
| Maximum closed resistance | 80 mΩ |
Up to ten CD-PH detectors may be connected in parallel between two short-circuit isolators, subject to system design requirements.
Standards and Certification
- EN 54-5:2017+A1:2018
- EN 54-7:2018
- EN 54-17:2005/AC:2007
- IEC 60945 compass-safe requirement
- Declaration of Conformity DOC-006136
- Declaration of Conformity DOC-009516
Recommended Accessories
- CD-B detector base, Part No. 5101509-00A
- IP-ADAPT, Part No. 5100775-00A
- Address programming tool
- Remote alarm indicator or compatible sounder
- Protective dust cover during construction and installation
Typical Applications
- Vessel accommodation spaces
- Machinery control rooms
- Engine-room monitoring areas
- Electrical and automation rooms
- Ro-Ro and passenger vessels
- LNG and LPG carriers
- Offshore platforms and FPSOs
- Cargo and service spaces
- Naval vessels and workboats
