Product overview

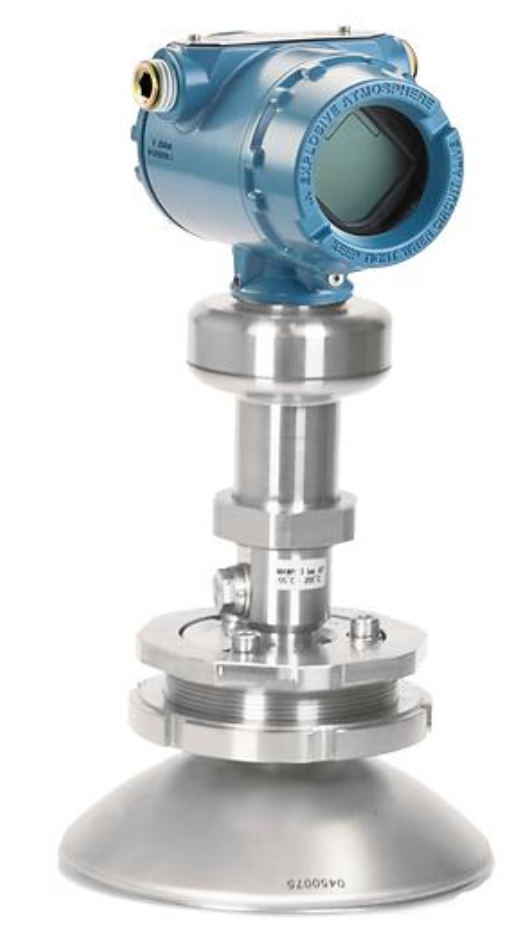

The Rosemount 5408 is an advanced radar transmitter for continuous, non-contact level measurement of liquids and solid materials. It provides reliable measurement in demanding tanks where condensation, vapour, foam, dust or aggressive media may affect conventional instruments.
Its strong radar signal, intelligent echo processing and onboard diagnostics make it suitable for critical marine, offshore and industrial tank-measurement applications. Official Emerson product page.
Technical specifications
| Specification | Details |
|---|---|
| Measurement principle | Two-wire FMCW non-contacting radar |
| Radar frequency | 26 GHz |
| Measured media | Liquids and solid materials |
| Maximum measuring range | Configuration-dependent; up to approximately 150 m |
| Reference accuracy | Up to ±2 mm, depending on configuration |
| Output options | 4–20 mA with HART® or FOUNDATION™ Fieldbus |
| Operating voltage | Loop-powered; configuration-dependent |
| Antenna options | Process-seal, cone, parabolic and hygienic antennas |
| Process connections | Threaded, flanged or hygienic connections |
| Wetted materials | Options including 316/316L stainless steel and PTFE |
| Enclosure protection | Available with IP66, IP67 and IP68 ratings |
| Hazardous-area approvals | ATEX, IECEx, FM and other regional options |
| Functional safety | Rosemount 5408:SIS available for SIL 2 applications |
| Configuration tools | Radar Master Plus, handheld communicator or compatible host system |
Specifications and approvals depend on the complete ordering code. Emerson 5408 product datasheet.
Main features
- Accurate, non-contact measurement with no moving parts
- Strong continuous radar signal for difficult process conditions
- Smart Echo Supervision™ for improved measurement reliability
- Handles heavy condensation and aggressive media
- Guided commissioning and configuration
- Advanced onboard instrument diagnostics
- Low maintenance compared with mechanical level instruments
- Suitable for inventory, process control and overfill applications
- Hazardous-area and functional-safety versions available
Marine and offshore applications
- Cargo and storage tanks
- Fuel-oil and diesel-oil tanks
- Lubricating-oil tanks
- Chemical and additive tanks
- Ballast and freshwater tanks
- Sludge and waste tanks
- FPSO and offshore process vessels
- Terminal and bunker-storage tanks
Final suitability depends on the vessel’s class requirements, process medium, hazardous-area classification, and selected product approvals.
