Product Overview

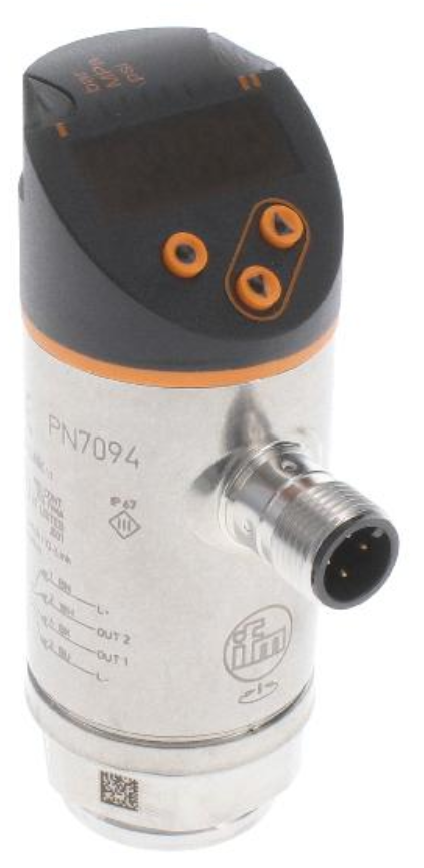

The ifm PN7094 is a compact electronic pressure sensor designed for monitoring liquids and gases in industrial machinery. It combines a ceramic-capacitive measuring cell, two configurable switching outputs, IO-Link communication and a highly visible four-digit red/green display.
The display colour can indicate whether the measured pressure is within the acceptable operating range, allowing technicians to identify abnormal conditions quickly.
Main Technical Specifications
| Specification | Details |
|---|---|
| Pressure type | Relative pressure and vacuum |
| Measuring range | −1 to 10 bar |
| Alternative units | −14.5 to 145 psi / −0.1 to 1 MPa |
| Operating voltage | 18–30 VDC |
| Current consumption | Below 35 mA |
| Number of outputs | 2 configurable digital outputs |
| Output design | PNP or NPN |
| Output function | Normally open or normally closed |
| Maximum output current | 150 mA |
| Communication interface | IO-Link 1.1 |
| IO-Link transmission | COM2, 38.4 kBaud |
| Response time | Below 3 ms |
| Switching frequency | Below 170 Hz |
| Switch-point accuracy | Better than ±0.5% of span |
| Repeatability | Better than ±0.1% of span |
| Pressure rating | 75 bar |
| Minimum burst pressure | 150 bar |
| Medium temperature | −25°C to +80°C |
| Ambient temperature | −25°C to +80°C |
| Protection rating | IP65 and IP67 |
| Process connection | G 1/4 female |
| Electrical connector | M12, 4-pin |
| Wetted materials | 316L stainless steel, ceramic and FKM |
| Housing dimensions | Ø34 × 90.7 mm |
| Approximate weight | 242 g |
| Housing rotation | Upper housing rotatable through 345° |
Technical values are based on the official ifm PN7094 datasheet.
Main Features
- Clear four-digit red/green digital display
- Two independently configurable switching outputs
- Selectable PNP or NPN switching logic
- Normally open or normally closed operation
- IO-Link communication for remote parameter setting
- Fast response time below 3 ms
- High overload and burst-pressure resistance
- More than 100 million minimum pressure cycles
- Short-circuit, reverse-polarity and overload protection
- Rotatable housing for convenient display alignment
- Robust IP65/IP67 construction
- Suitable for both gases and liquids
Typical Marine and Industrial Applications
- Compressed-air systems
- Pneumatic control equipment
- Hydraulic power packs
- Pump discharge-pressure monitoring
- Compressor protection systems
- Cooling-water and lubrication systems
- Filter blockage and differential-condition monitoring
- Engine-room auxiliary machinery
- Manufacturing and packaging equipment
- Automated process skids
Important Ordering Checks
Before supplying the PN7094, confirm:
- Required range is −1 to 10 bar
- G 1/4 female process connection is suitable
- System uses an 18–30 VDC supply
- PNP or NPN output configuration
- Required switching or IO-Link operation
- Medium compatibility with 316L stainless steel, ceramic and FKM
- M12 mating cable or connector requirement
- Hazardous-area certification requirement
- Marine or classification approval requirement
Important: PN7094 provides two switching outputs and IO-Link. It does not provide a conventional 4–20 mA analogue output.
