Product Overview

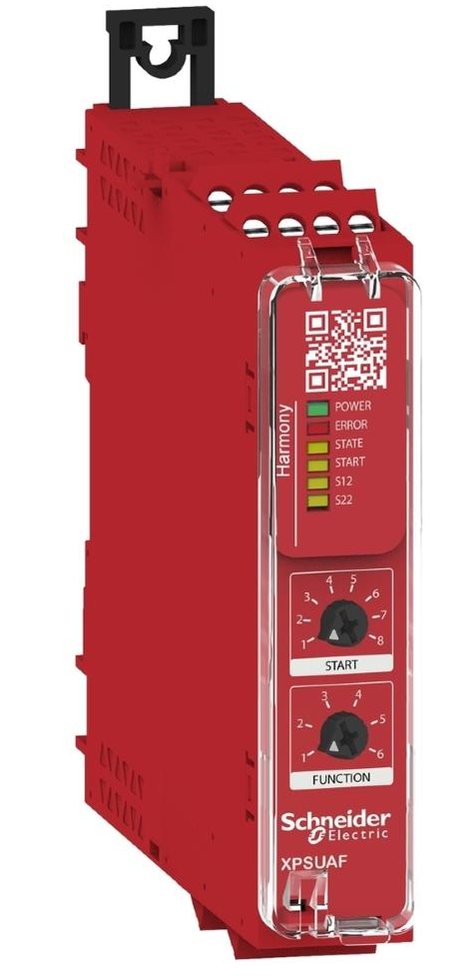

The Schneider Electric XPSUAF13AP is a multifunctional safety relay designed to monitor emergency-stop circuits, safety guards, light curtains and other machine-safety devices. Its selectable safety functions allow one module to support several common industrial safety applications.
The module can achieve Performance Level PL e, Category 4 and SIL 3, depending on the circuit design and application. It also provides extensive diagnostic information to simplify troubleshooting and reduce equipment downtime. Schneider Electric product page
Main Technical Specifications
| Specification | Details |
|---|---|
| Safety inputs | 2 channels |
| Safety outputs | 3 normally open relay outputs |
| Diagnostic output | 1 solid-state output |
| Supported input circuits | NC pair, antivalent pair, PNP pair and OSSD pair |
| Starting modes | Automatic, manual or monitored |
| Maximum safety level | PL e / Category 4 |
| SIL rating | SIL 3 / SILCL 3 |
| Rated operational current | Up to 5 A at 250 V AC, AC-1 |
| DC output rating | R300 classification |
| Input synchronization time | Selectable 0.5, 2 or 4 seconds |
| Power consumption | 2 W at 24 V DC |
| Housing protection | IP40 |
| Terminal protection | IP20 |
| Dimensions | 22.5 × 100 × 120 mm |
| Approximate weight | 0.20 kg |
| Operating temperature | −25°C to +55°C |
Specifications are based on the official Schneider Electric datasheet.
Supported Safety Applications
- Emergency-stop pushbuttons
- Safety-door and guard monitoring
- Mechanical limit switches
- Magnetic safety switches
- RFID safety switches
- Safety light curtains
- Electro-sensitive protective equipment
- PNP proximity safety sensors
- OSSD safety devices
Typical Marine and Industrial Uses
- Engine-room auxiliary machinery
- Pump and compressor control panels
- Winches, cranes and lifting equipment
- Conveyor and material-handling systems
- Hydraulic machinery
- Automated production lines
- Packaging and processing machinery
- Retrofit of obsolete Preventa safety relays
Key Features
- Universal relay supporting multiple safety functions
- Maximum rating up to PL e, Category 4 and SIL 3
- Three positively guided safety relay outputs
- More than 40 diagnostic messages
- Front rotary selectors for straightforward configuration
- Slim 22.5 mm housing saves panel space
- Removable terminals simplify replacement and maintenance
- LED indication for power, inputs, operating state and errors
- Suitable replacement for several discontinued Schneider Preventa modules
