Product Overview

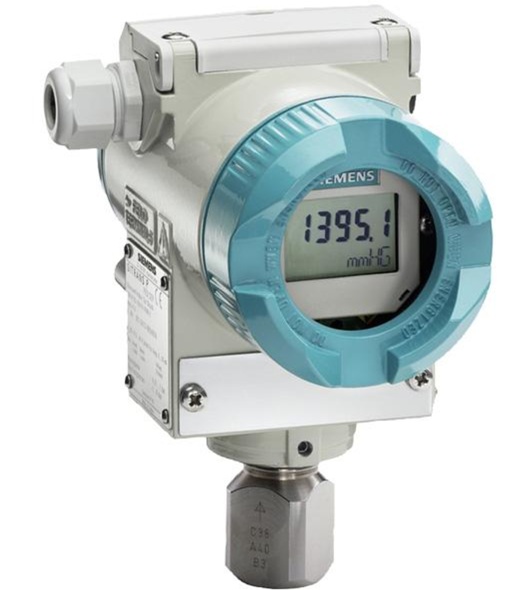

The Siemens SITRANS P DS III 7MF4033-1EA10-2AC6-Z is a two-wire smart pressure transmitter for measuring liquids, gases and vapours. It is highly relevant to the marine market because pressure transmitters are routinely required for machinery monitoring, process control and replacement projects.
Technical Specifications
| Product information | Exact referenced configuration |
|---|---|
| Manufacturer | Siemens |
| Product family | SITRANS P DS III |
| Full model | 7MF4033-1EA10-2AC6-Z |
| Measurement type | Gauge pressure |
| Measuring span | 0.63–63 bar |
| Maximum allowable working pressure | 67 bar |
| Maximum test pressure | 100 bar |
| Output | 4–20 mA |
| Communication | HART |
| Supply voltage | 10.5–45 V DC for non-intrinsically-safe operation |
| Process diaphragm | Stainless steel 316L / 1.4404 |
| Filling fluid | Silicone oil |
| Enclosure protection | IP66 |
| Operating temperature | −40°C to +85°C |
| Local display | Integrated digital display |
| Referenced weight | Approximately 1.44 kg |
| Product type | Two-wire smart pressure transmitter |
Product Description
The transmitter converts process pressure into a proportional 4–20 mA signal for transmission to a vessel’s automation, alarm or control system. HART communication permits configuration, calibration and diagnostic access through the same two-wire loop.
Typical marine applications include:
- Main- and auxiliary-engine pressure monitoring
- Fuel- and lubricating-oil systems
- Cooling-water and compressed-air systems
- Boiler and feedwater pressure measurement
- Pump discharge and suction monitoring
- Cargo, ballast and utility systems
- Retrofit of obsolete pressure transmitters
