Manufacturer: SKF
Exact Model: TMEH 1
Product Category: Lubrication and Condition Monitoring
Product Type: Portable oil-condition assessment instrument
Product Overview

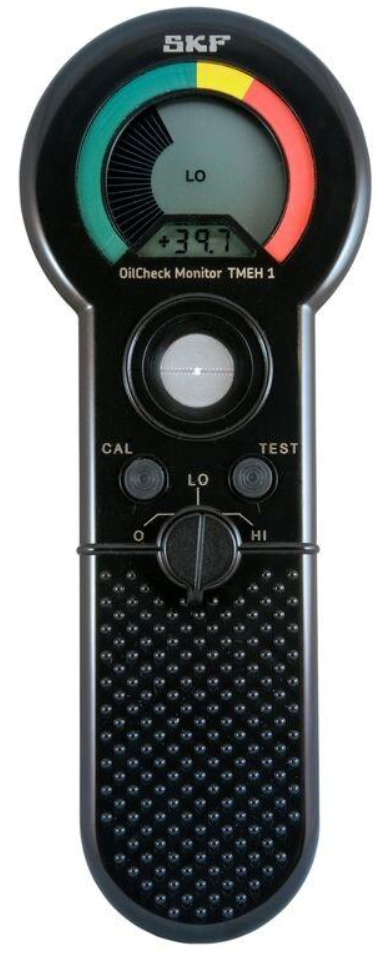

The SKF TMEH 1 provides an immediate indication of machinery-oil deterioration. It compares the dielectric characteristics of a used oil sample with a fresh reference sample of the same oil.
Changes caused by water contamination, fuel dilution, metallic particles and oxidation influence the displayed result, helping maintenance personnel identify oil requiring further laboratory analysis or replacement.
Key Technical Specifications
- Measurement principle: Change in the oil’s dielectric constant
- Display range: –999 to +999
- Repeatability: Better than ±5%
- Compatible oils: Mineral and synthetic lubricating oils
- Measurement modes:
- LO range: High-sensitivity assessment
- HI range: Heavily contaminated or degraded oils
- Display: Numerical LCD with colour-coded condition scale
- Power supply: 9 V alkaline battery, IEC 6LR61
- Battery life: More than 150 hours or 3,000 tests
- Instrument dimensions: 250 × 95 × 32 mm
- Instrument weight: Approximately 385 g
- Complete-kit weight: Approximately 1.2 kg
- Portable protective carrying case included
- No external power supply required during testing
Standard Package
- SKF TMEH 1 OilCheck Monitor
- 9 V alkaline battery
- Protective carrying case
- Operating instructions
Marine and Offshore Applications
- Main- and auxiliary-engine lubricating-oil screening
- Reduction-gear and gearbox oil checks
- Hydraulic-system oil-condition monitoring
- Stern-tube lubricant assessment
- Compressor and refrigeration-system oil checks
- Generator-engine lubricant monitoring
- Investigation of possible water or fuel contamination
- Routine checks between scheduled laboratory analyses
- Comparison of oil condition before and after maintenance
Important Operating Notes
- Always calibrate the instrument using fresh, unused oil of exactly the same type as the oil being tested.
- A reading indicates a change in overall oil condition but does not identify or quantify individual contaminants.
- Different oil brands, grades and additive packages can produce different baseline readings.
- The TMEH 1 is a screening instrument, not a replacement for laboratory oil analysis, viscosity testing or spectrometric wear-metal analysis.
- Hazardous-area certification is not stated; do not use it in potentially explosive areas without confirming suitability.
