Manufacturer: Testo SE & Co. KGaA
Exact Model: Testo 883-1
Order Number: 0560 8830
Product Category: Electrical Testing and Condition Monitoring

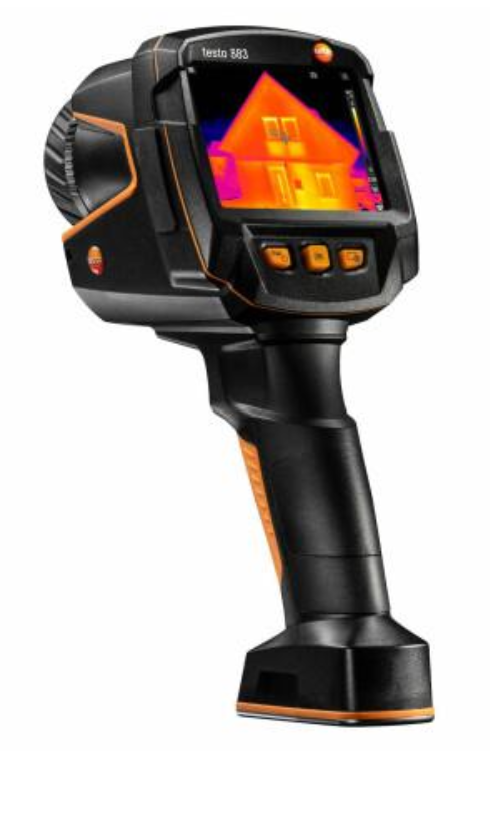

Product Type: Professional infrared thermal-imaging camera
Product Overview
The Testo 883-1 is designed for non-contact detection of abnormal temperatures in electrical and mechanical equipment. Its manual focus, high thermal sensitivity and reporting functions make it suitable for preventive maintenance aboard vessels and offshore installations.
Key Technical Specifications
- Infrared resolution: 320 × 240 pixels
- SuperResolution image: 640 × 480 pixels
- Thermal sensitivity: Less than 40 mK
- Temperature-measuring range: –30°C to +650°C
- Measurement accuracy: ±2°C or ±2% of reading, whichever is greater
- Spectral range: 7.5–14 µm
- Standard-lens field of view: 30° × 23°
- Optional telephoto lens: 12° × 9°
- Focus: Manual
- Minimum focusing distance: Less than 0.1 m
- Visible-light camera: 5 MP
- Display: 3.5-inch capacitive touchscreen
- Digital zoom: 2× and 4×
- Interfaces: USB-C, Bluetooth and WLAN
- Image formats: Thermal and standard JPEG images
- Functions: Hot/cold-spot detection, area measurement, Delta-T, alarms and isotherms
- Built-in laser marker and voice recording
- Testo SiteRecognition for automatic image assignment
- Compatible with Testo IRSoft reporting software and Thermography App
- Power supply: Rechargeable lithium-ion battery
Marine and Offshore Applications
- Switchboard and electrical-panel inspections
- Detection of loose or overheated terminals
- Motor, generator and bearing temperature monitoring
- Transformer and circuit-breaker inspections
- Pump, compressor and gearbox condition assessment
- Exhaust-system and machinery-temperature surveys
- Steam-line, insulation and heat-loss inspection
- Preventive-maintenance documentation
