Product overview

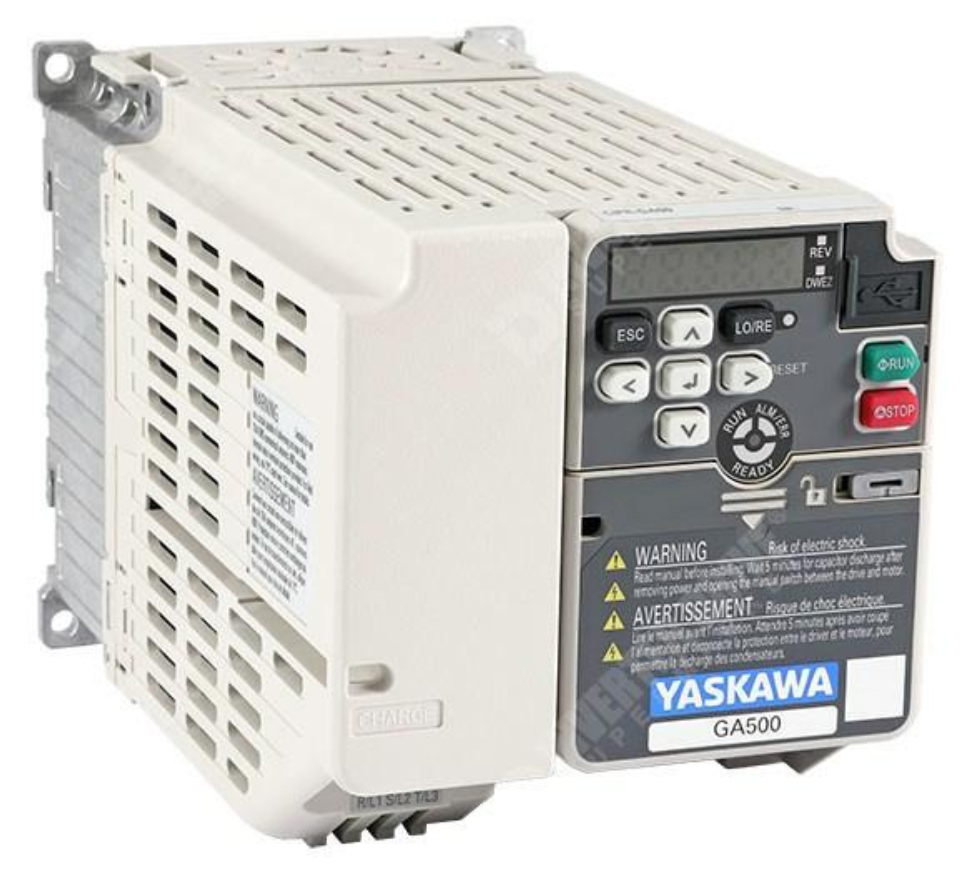

The Yaskawa GA50C4018EBA is a compact industrial variable-frequency drive for controlling the speed and torque of induction, permanent-magnet and synchronous-reluctance motors.
This version supports motors up to 5.5 kW in heavy-duty operation or 7.5 kW in normal-duty operation. It incorporates an EMC filter, braking transistor, Safe Torque Off and multiple communication options.
Technical specifications
| Specification | Details |
|---|---|
| Input power supply | Three-phase 380–480 VAC |
| Supply frequency | 50/60 Hz |
| Maximum motor rating—heavy duty | 5.5 kW |
| Maximum motor rating—normal duty | 7.5 kW |
| Rated output current—normal duty | Approximately 17.5 A |
| Heavy-duty overload capacity | 150% for 60 seconds |
| Normal-duty overload capacity | 110% for 60 seconds |
| Maximum output frequency | 590 Hz |
| Motor compatibility | Induction, permanent-magnet and synchronous-reluctance motors |
| Control modes | V/f and sensorless-vector control |
| Digital inputs | 7 |
| Digital outputs | 3 |
| Analogue inputs | 2 |
| Analogue output | 1 |
| Communication | MEMOBUS/Modbus RS-485 |
| Optional networks | PROFINET, EtherNet/IP, EtherCAT, PROFIBUS, CANopen and others |
| Functional safety | Safe Torque Off, SIL 3 / PL e |
| Braking transistor | Built in |
| EMC filter | Built in |
| Enclosure | IP20 |
| Operating temperature | −10°C to +50°C without derating |
| Maximum humidity | 95%, non-condensing |
| Approximate dimensions | 128 × 170 × 180 mm |
| Approximate weight | 2.9 kg |
The GA500 series is designed for compact industrial motor-control applications. Official Yaskawa GA500 series.
Main features
- Compact design for restricted control-panel space
- Controls several different motor technologies
- Built-in EMC filter
- Integrated Safe Torque Off
- Built-in dynamic-braking transistor
- Sensorless-vector control
- Detachable digital operator
- USB programming without applying main power
- Automatic motor setup
- RS-485 Modbus communication
- Optional industrial-Ethernet communication
- High overload capacity for demanding machinery
Marine and industrial applications
- Pumps and booster systems
- Engine-room ventilation fans
- Cooling-water pumps
- HVAC fans and compressors
- Hydraulic-power units
- Conveyors
- Centrifugal separators
- Workshop machinery
- Crane and hoist auxiliary systems
- Exhaust and supply fans
- Process skids
- Water-treatment equipment
Marine or class-critical installation requires confirmation of the applicable environmental and classification requirements.
